BOLTLESS ROOFING PANELS

THD-BR100

Boltless roofing panel THD-BR100 with Polyurethane (PUR) or Polyisocyanurate foam (PIR) cores, designed with 47mm rib height and hidden screw mount, to increase the aesthetics of your buildings and projects. The design of the product ideally prevents the leakage issues that may cause for the buildings.

Product application: Used for roofing of factory buildings, industrial parks, warehouses or solar panels, etc,

Outstanding Advantages

FIRE RESISTANCE

GOOD THERMAL INSULATION

SOUND ABSORPTION

GOOD RESISTANCE

Product Structure

PIR & PUR FOAM

COLOR STEEL

Table of contents

Technical Specifications

Cover WidthOverall WidthMaximum lengthPanel ThicknessSurface profileInside profileJoint typeExternal facingInternal facing
1.000mm (Tol +/-3)1.090mmMax 14 meter and on customer request50, 75, 100 (mm) (Tol +/-2mm)2 ribs, 50mm heightMicro ribHidden fixColor Steel, stainless steelColor Steel, stainless steel
Insulate MaterialOverall densityThermal conductivityReaction to fire
Rigid polyurethane foam (PUR)40kg/m3 (Tol +/-3 kg/m3)0.020 - 0.025 W/m.KClass B2; B3 (DIN4102)
Polyisocyanurate foam (PIR)---

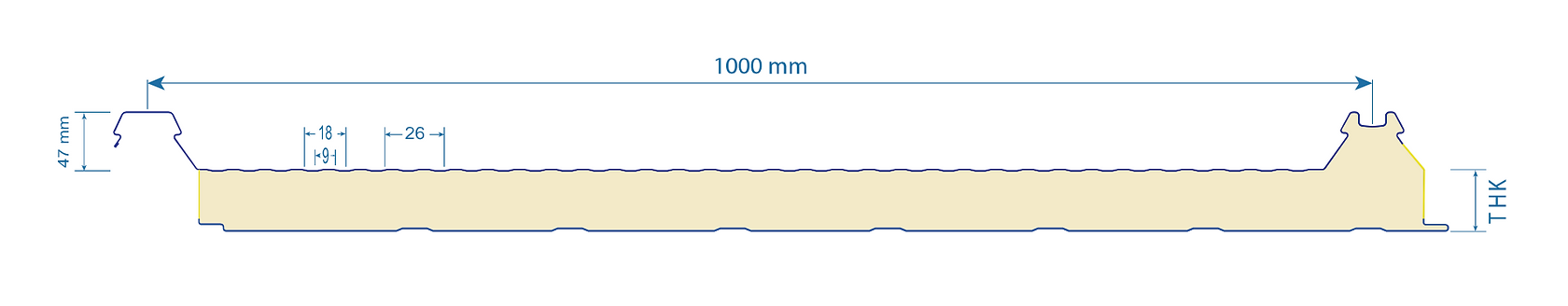

Profile

Features of THD-BR100:

  • Outstanding leakage prevention

  • Optimal installation and operation cost

  • ​High mobility

Tấm Lợp Giấu Vít


Joint Type

THD-BR100 Panel’s joint are designed to perfectly leakage prevention. C and T Untility clamping use for increase bearing capacity.

Boltless Roofing Panels
